The sanitary Tube-in-Tube heat exchanger

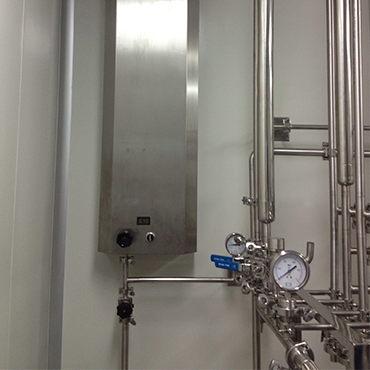

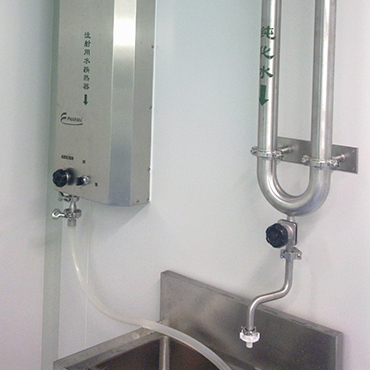

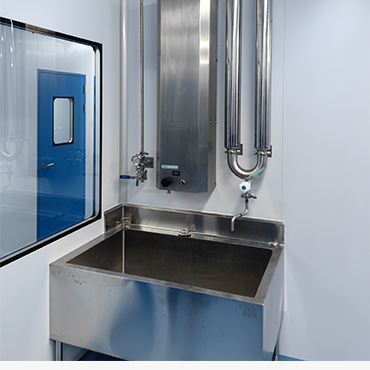

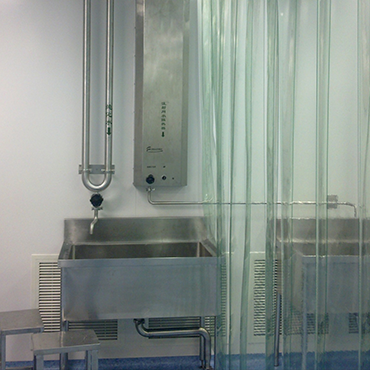

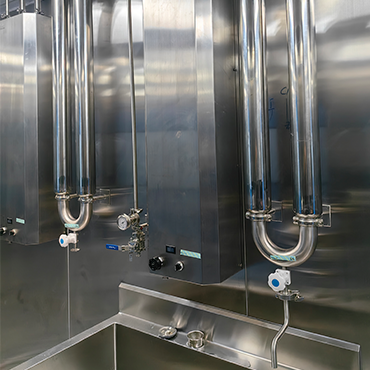

Application of The sanitary Tube-in-Tube heat exchanger

E-Pharma sanitary Tube-in-Tube heat exchanger was special developed for WFI point of use cooling application when flow rate is less than 1500Lph, it’s easy to be installed and operation, quickly cooling response time, no contamination risk and free maintenance.

Working Principle

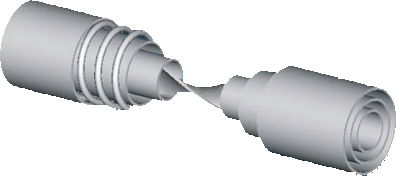

The unit is made up of three seamless tubes placed within each other. Between the services tubes there are spirals to make sure that the space is kept between the tubes and to create a turbulent flow and therewith a better heat transfer. There are no any crevices or dead spots in product channel. The three tubes are then bent together 180° to a U-bend. E-Pharma bends the three tubes with the spirals in one step which makes it no leakage risk (no welds in the turn). The product is going in the middle tube and the cooling or heating media in the inner and outer ones. A counter-current flow gives the most efficient heat transfer and also the possibility to have crossing temperature programs.

Any thermal expansion is taken up by the bend so the unit is very resistant against thermal fatigue that comes from big temperature differences in heating/cooling duties or when sterilizing with steam. The heat exchanger can be sold as a naked unit or a complete point of use cooler, the module is to prefer since it is easy to install and use directly. The module consists of the E-Pharma Tube-in-Tube, cladding, valve arrangements and a pitot tube arrangement etc. The pitot tube is especially made for E-Pharma tube in tube heat exchanger connect to main pipe system. Two standard sizes of tube in tube heat exchanger, 0~1000Lph, and 1000~1500Lph.

Features And Benefits

  • No internal welds, to prevent inter leakage
  • The high efficient heat transfer gives a fast response to temperature changes(10s)
  • Small module design, save space and very easy to install in-line in the WFI system
  • Easy to steam in place or over high temperature water sterilized
  • Free maintenance for main parts

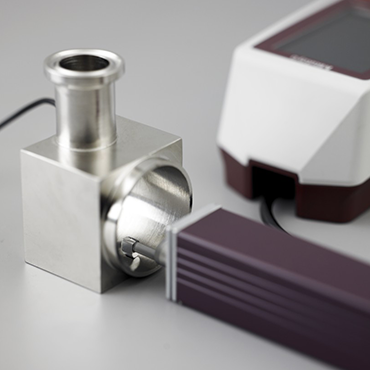

  • All heat exchanger contact surfaces are electro polished to have an Ra<0.4um
  • Keep operator safe with outlet temperature indicator

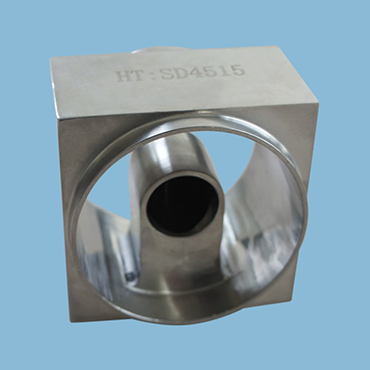

  • Forged connection to make sure drainable on the product side
  • Full document package

Detail Display

Collaborate with us now for innovative water system heat exchange, building a cooperative future together.
